In today’s world, monolithic applications are rapidly being replaced by microservice architectures — where applications are divided into small, independent services that can scale, deploy, and evolve individually.

In this step-by-step tutorial, we’ll build a fully working microservices ecosystem from scratch using:

Spring Boot 3.2.x
Spring Cloud Netflix Eureka (Service Discovery)
Spring Cloud Gateway (API Gateway)
Spring Cloud OpenFeign (Inter-Service Communication)
Maven (Build Tool)

By the end, you’ll have four independent Spring Boot microservices running and talking to each other — no Docker, no complex infra, just clean Java + Spring setup.

Why I Used Microservices Architecture in My Project

In one of my recent projects, our monolithic application started facing several challenges as the business grew.

We had multiple teams working on every small change or release caused deployment dependencies, performance bottlenecks, and testing delays.

To overcome these challenges, we decided to migrate to a Microservices-based architecture using Spring Boot and Spring Cloud.

Key Pain Points in the Monolith:

Every new feature deployment required full application redeployment.
The codebase became large and tightly coupled.
Database queries were shared between multiple modules.
Downtime affected the entire system, even for small bugs.

Architecture Overview

Our ecosystem will have four Spring Boot projects:

Service	Port	Role
Eureka Server	8761	Service registry — all services register here
Department Service	8081	Provides department data
Employee Service	8082	Provides employee data, calls department service
API Gateway	8080	Single entry point, routes requests to services

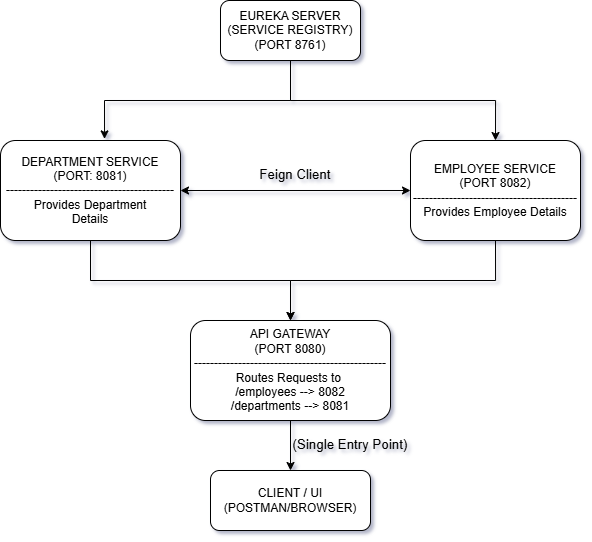

Architecture Diagram

** **

How It Works in Real Time

Scenario 1 — Fetching an Employee’s Department Info

When an HR manager opens an employee profile in the web app:

Frontend calls
GET https://api.mycompany.com/employees/1001
Request hits the API Gateway → routes to Employee Service
Employee Service fetches employee details (from DB) and calls Department Service (via Feign + Eureka) to get department info.
Employee Service aggregates both results and sends the response back to the Gateway → client.
The client sees:

{
  "employee": {
    "id": 1001,
    "name": "Alice Johnson",
    "departmentId": 2
  },
  "department": {
    "id": 2,
    "name": "Engineering"
  }
}

Scenario 2 — Scaling Up

During appraisal season, Employee Service traffic spikes.
Since each microservice is independent, you can deploy multiple Employee Service instances (on Kubernetes, ECS, etc.).
Eureka automatically registers them, and the API Gateway load-balances requests across all.

No config change needed
No downtime
Seamless scaling

Step 1 — Create the Parent Folder

Create one folder to hold all projects:

mkdir spring-microservices-ecosystem

We’ll create four sub-modules:

eureka-server
department-service
employee-service
api-gateway

Each module will be an independent Spring Boot Maven project.

Step 2 — Setup Eureka Server (Service Registry)

Folder: eureka-server

1️ Create pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <parent>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-parent</artifactId>
  <version>3.2.6</version>
  <relativePath/>
 </parent>
 <groupId>com.example</groupId>
 <artifactId>eureka-server</artifactId>
 <version>1.0.0</version>
 <properties>
  <java.version>17</java.version>
  <spring-cloud.version>2023.0.1</spring-cloud.version>
 </properties>
 <dependencies>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
 </dependencies>
 <dependencyManagement>
  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>${spring-cloud.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
  </dependencies>
 </dependencyManagement>
 <build>
  <plugins>
    <plugin>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-maven-plugin</artifactId>
    </plugin>
  </plugins>
 </build>
</project>

2️ Create main class

package com.example.eurekaserver;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;
@SpringBootApplication
@EnableEurekaServer
public class EurekaServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(EurekaServerApplication.class, args);
    }}

3️ application.yml

server:
  port: 8761
spring:
  application:
    name: eureka-server
eureka:
  client:
    register-with-eureka: false
    fetch-registry: false

Run & Verify

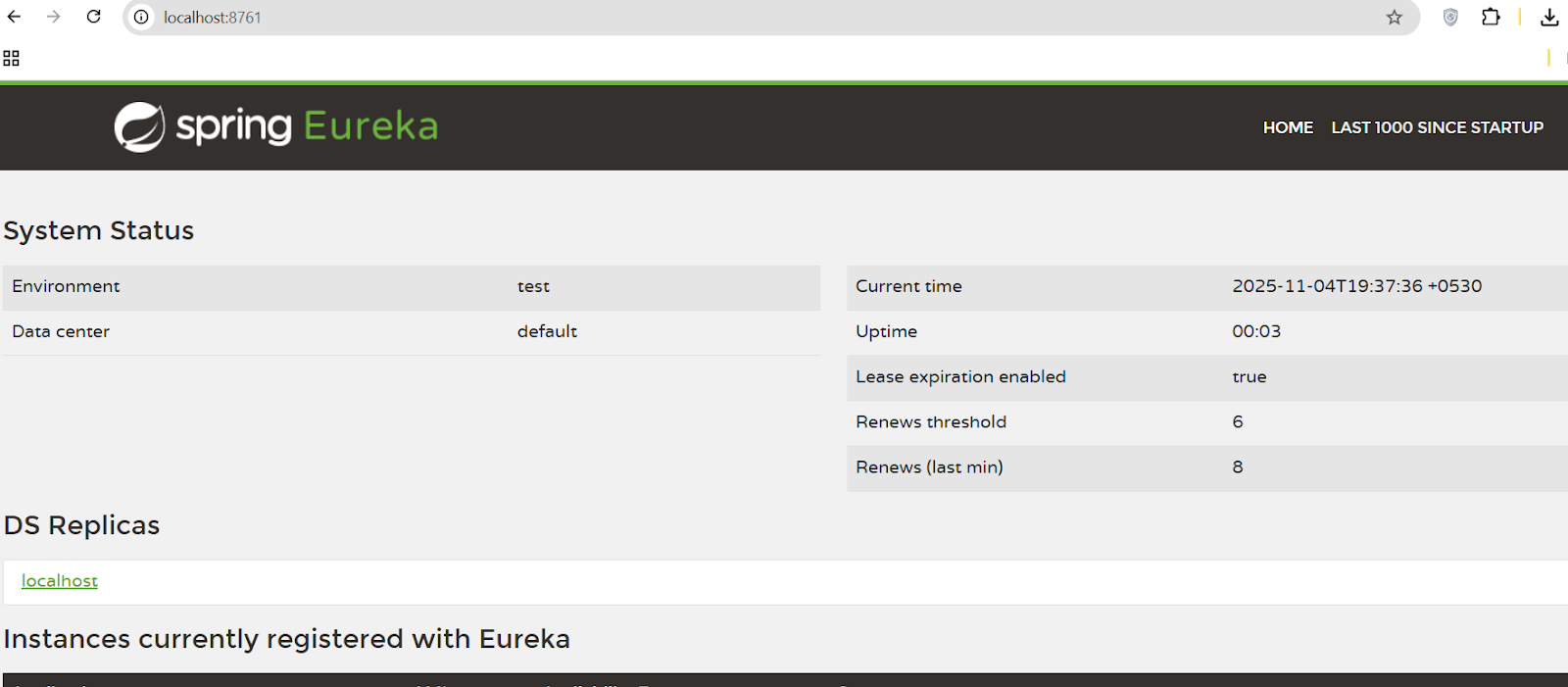

Run EurekaServerApplication. Then open http://localhost:8761 — you should see the Eureka Dashboard.

Step 3 — Create Department Service

Folder: department-service

1️ pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <parent>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-parent</artifactId>
  <version>3.2.6</version>
  <relativePath/>
 </parent>
 <groupId>com.example</groupId>
 <artifactId>department-service</artifactId>
 <version>1.0.0</version>
 <properties>
  <java.version>17</java.version>
  <spring-cloud.version>2023.0.1</spring-cloud.version>
 </properties>
 <dependencies>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
  </dependency>
 </dependencies>
 <dependencyManagement>
  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>${spring-cloud.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
  </dependencies>
 </dependencyManagement>
 <build>
  <plugins>
    <plugin>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-maven-plugin</artifactId>
    </plugin>
  </plugins>
 </build>
</project>

2️ Main class

package com.example.departmentservice;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
@SpringBootApplication
@EnableDiscoveryClient
public class DepartmentServiceApplication {
    public static void main(String[] args) {
        SpringApplication.run(DepartmentServiceApplication.class, args);}}

3️ Model

package com.example.departmentservice.model;
public class Department {
    private Long id;
    private String name;
    public Department() {}
    public Department(Long id, String name) {
        this.id = id; this.name = name;
    }
    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }
    public String getName() { return name; }
    public void setName(String name) { this.name = name; }
}

4️ Controller

package com.example.departmentservice.controller;
import com.example.departmentservice.model.Department;
import org.springframework.web.bind.annotation.*;
import java.util.*;
@RestController
@RequestMapping("/departments")
public class DepartmentController {
    private static final List<Department> departments = Arrays.asList(
            new Department(1L, "Engineering"),
            new Department(2L, "HR"),
            new Department(3L, "Finance")
    );
    @GetMapping
    public List<Department> getAll() {
        return departments;
    }
    @GetMapping("/{id}")
    public Department getById(@PathVariable Long id) {
        return departments.stream()
                .filter(dep -> dep.getId().equals(id))
                .findFirst()
                .orElse(null);
    }
}

5️ application.yml

server:
  port: 8081
spring:
  application:
    name: department-service
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/

Step 4 — Create Employee Service (Feign Client + Eureka)

Folder: employee-service

1️pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <parent>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-parent</artifactId>
  <version>3.2.6</version>
  <relativePath/>
 </parent>
 <groupId>com.example</groupId>
 <artifactId>employee-service</artifactId>
 <version>1.0.0</version>
 <properties>
  <java.version>17</java.version>
  <spring-cloud.version>2023.0.1</spring-cloud.version>
 </properties>
 <dependencies>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
  </dependency>
 </dependencies>
 <dependencyManagement>
  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>${spring-cloud.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
  </dependencies>
 </dependencyManagement>
 <build>
  <plugins>
    <plugin>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-maven-plugin</artifactId>
    </plugin>
  </plugins>
 </build>
</project>

2️ Main class

package com.example.employeeservice;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class EmployeeServiceApplication {
    public static void main(String[] args) {
        SpringApplication.run(EmployeeServiceApplication.class, args);
    }
}

3️ Feign client

package com.example.employeeservice.feign;
import com.example.employeeservice.model.Department;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
@FeignClient(name = "department-service")
public interface DepartmentClient {
    @GetMapping("/departments/{id}")
    Department getDepartmentById(@PathVariable("id") Long id);
}

4️ Models & Controller

package com.example.employeeservice.model;
public class Employee {
    private Long id;
    private String name;
    private Long departmentId;
    public Employee() {}
    public Employee(Long id, String name, Long departmentId) {
        this.id = id; this.name = name; this.departmentId = departmentId;
    }
    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }
    public String getName() { return name; }
    public void setName(String name) { this.name = name; }
    public Long getDepartmentId() { return departmentId; }
    public void setDepartmentId(Long departmentId) { this.departmentId = departmentId; }
}
package com.example.employeeservice.model;
public class Department {
    private Long id;
    private String name;
    public Department() {}
    public Department(Long id, String name) { this.id = id; this.name = name; }
    public Long getId() { return id; } public void setId(Long id) { this.id = id; }
    public String getName() { return name; } public void setName(String name) { this.name = name; }
}

package com.example.employeeservice.controller;
import com.example.employeeservice.feign.DepartmentClient;
import com.example.employeeservice.model.Department;
import com.example.employeeservice.model.Employee;
import org.springframework.web.bind.annotation.*;
import java.util.*;
@RestController
@RequestMapping("/employees")
public class EmployeeController {
    private final DepartmentClient departmentClient;
    public EmployeeController(DepartmentClient departmentClient) {
        this.departmentClient = departmentClient;
    }
    private static final List<Employee> employees = Arrays.asList(
            new Employee(1L, "Alice", 1L),
            new Employee(2L, "Bob", 2L),
            new Employee(3L, "Charlie", 1L)
    );
    @GetMapping
    public List<Employee> getAll() { return employees; }
    @GetMapping("/{id}")
    public Map<String, Object> getEmployeeWithDepartment(@PathVariable Long id) {
        Employee emp = employees.stream().filter(e -> e.getId().equals(id)).findFirst().orElse(null);
        if (emp == null) return Map.of("error", "Employee not found");
        Department dept = departmentClient.getDepartmentById(emp.getDepartmentId());
        return Map.of("employee", emp, "department", dept);
    }
}

5️ application.yml

server:
  port: 8082
spring:
  application:
    name: employee-service
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/

Step 5 — Create API Gateway

Folder: api-gateway

1️ pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <parent>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-parent</artifactId>
  <version>3.2.6</version>
  <relativePath/>
 </parent>
 <groupId>com.example</groupId>
 <artifactId>api-gateway</artifactId>
 <version>1.0.0</version>
 <properties>
  <java.version>17</java.version>
  <spring-cloud.version>2023.0.1</spring-cloud.version>
 </properties>
 <dependencies>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-webflux</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-gateway</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
  </dependency>
 </dependencies>
 <dependencyManagement>
  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>${spring-cloud.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
  </dependencies>
 </dependencyManagement>
 <build>
  <plugins>
    <plugin>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-maven-plugin</artifactId>
    </plugin>
  </plugins>
 </build>
</project>

2️ Main class

package com.example.gateway;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class GatewayApplication {
    public static void main(String[] args) {
        SpringApplication.run(GatewayApplication.class, args);
    }
}

3️ application.yml

server:
  port: 8080
spring:
  application:
    name: api-gateway
  cloud:
    gateway:
      discovery:
        locator:
          enabled: true
          lower-case-service-id: true
      routes:
        - id: employee-service
          uri: lb://EMPLOYEE-SERVICE
          predicates:
            - Path=/employees/**
        - id: department-service
          uri: lb://DEPARTMENT-SERVICE
          predicates:
            - Path=/departments/**
eureka:
  client:
    service-url:

Step 6 — Run the Services (Order Matters)

# 1. Start the Eureka server

Run As 🡪 EurekaServerApplication

# 2. Start Department service

Run As 🡪 DepartmentServiceApplication

# 3. Start Employee service

Run As 🡪 EmployeeServiceApplication

# 4. Start API Gateway

Run As 🡪 GatewayApplication

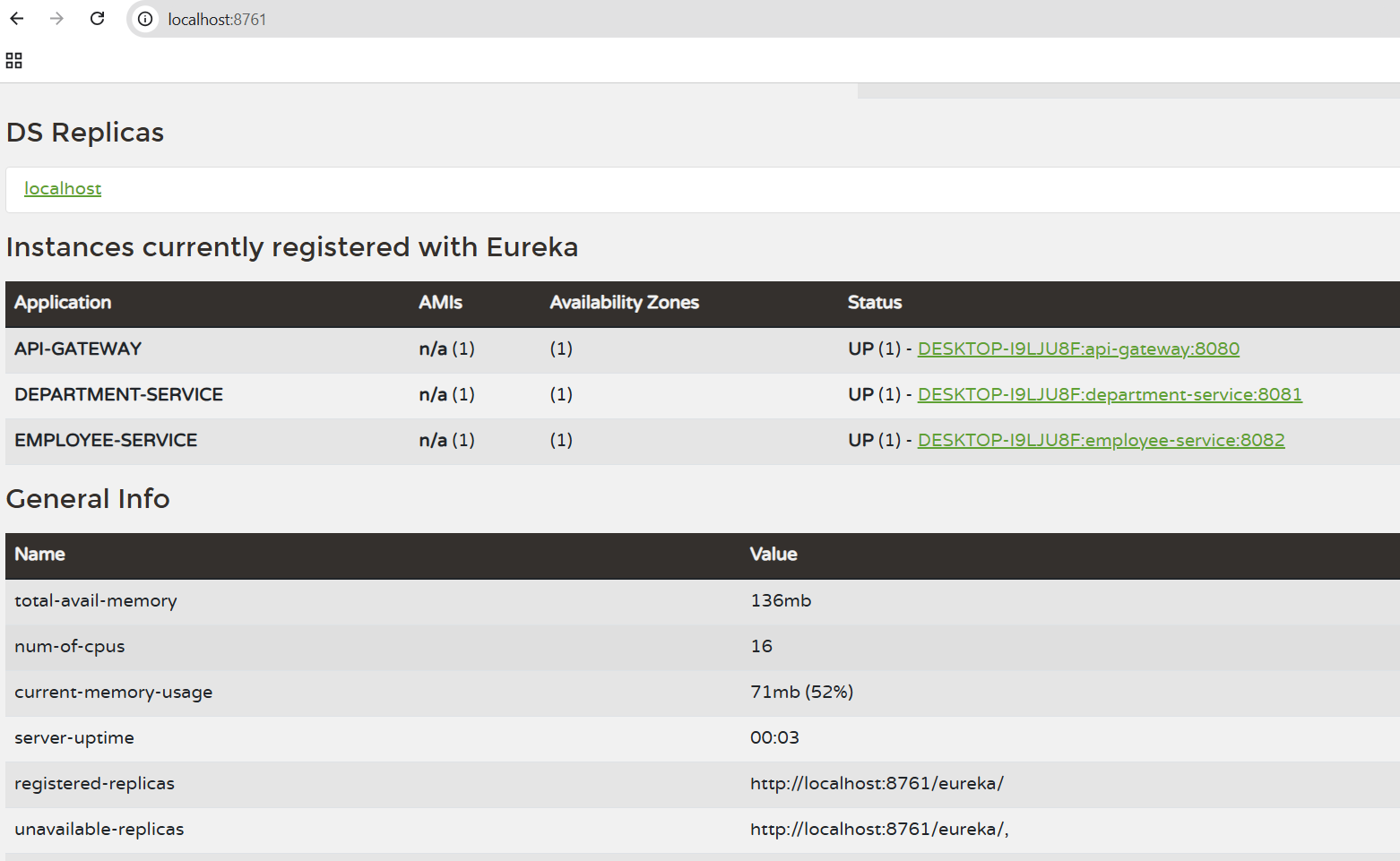

Check the Eureka dashboard: http://localhost:8761
All three clients should show up as REGISTERED.

Step 7 — Test the APIs

Through Gateway

GET http://localhost:8080/departments
GET http://localhost:8080/employees
GET http://localhost:8080/employees/1

Output:

{
  "employee": {
    "id": 1,
    "name": "Alice",
    "departmentId": 1
  },
  "department": {
    "id": 1,
    "name": "Engineering"
  }
}

Step 8 — Troubleshooting

Issue	Cause	Solution
Duplicate Key Exception: found duplicate key spring	Two top-level spring blocks in YAML	Merge them into one
Eureka dashboard empty	Clients not registered	Check eureka.client.service-url.defaultZone and network
Feign 404	Wrong path or service name	Ensure @FeignClient(name="department-service") matches
Port conflict	Already in use	Change server. port
Gateway 404	Wrong route predicates	Check Path and ensure /departments/ is correct**

Conclusion

You’ve just built a fully functioning microservices system from scratch using Spring Boot 3.2and Spring Cloud.
Each service isindependent, discoverable, and communicatesvia Feign through Eureka.
The API Gateway provides a single unified entry point.

This same architecture is used by real enterprise systems — what you’ve built here is a production-grade foundation.

From Monolith to Microservices: Scaling with Spring Boot and Spring Cloud

Why I Used Microservices Architecture in My Project

Key Pain Points in the Monolith:

Architecture Overview

Architecture Diagram

How It Works in Real Time

Scenario 2 — Scaling Up

Step 1 — Create the Parent Folder

Step 2 — Setup Eureka Server (Service Registry)

Step 3 — Create Department Service

Step 4 — Create Employee Service (Feign Client + Eureka)

Step 5 — Create API Gateway

Step 6 — Run the Services (Order Matters)

Step 7 — Test the APIs

Step 8 — Troubleshooting

Conclusion
