Recap

This article is a five-part series on creating interactive infographics with plain Javascript.

Previously we added navigation features to interact with content. We can scroll, zoom, pan, or drag a large canvas any way we like.

Integrated usage (so far)

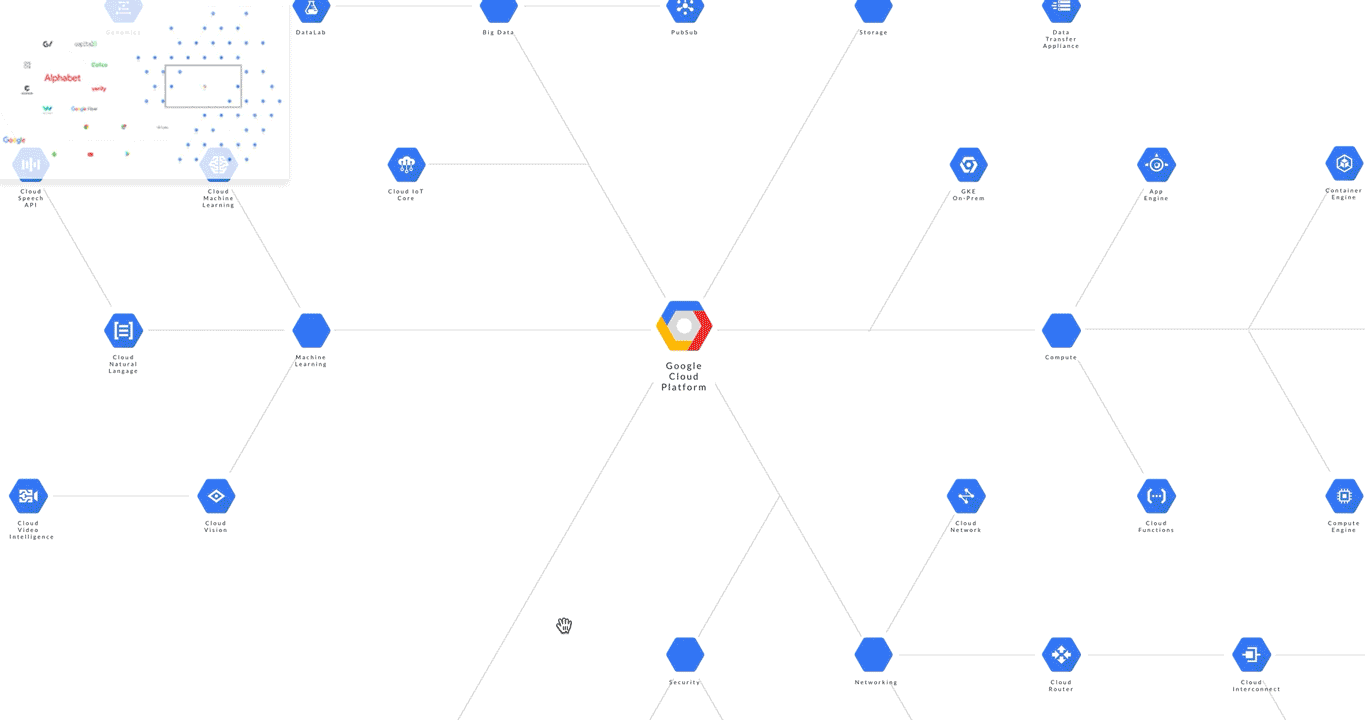

Did you notice something special? There’s a mini-map that responds to user actions. What’s going on?

Objective

We are going to add a map locator to enhance navigation.

Introduction

Map locators are useful for exploring large canvases. It is a simple yet effective visualisation gadget that provides continuous updates on the current locations. The gadget is also ideal for illustrating thematic relationships among interacting components.

Concept

The map locator comprises a miniMap and a location indicator. A miniMap is a scaled-down version of the actual-sized canvas. The location indicator is an icon or a marker that states the user’s current location.

You can use the map locator in two ways:

When visitors scroll/zoom/pan/drag the canvas, the indicator automatically moves to its new position. You’ve seen that in action at the earlier intro/recap demo video.
Conversely, visitors can also use the indicator itself to interact with the canvas. You can either drag the indicator or point-and-click on any areas to navigate to any new regions.

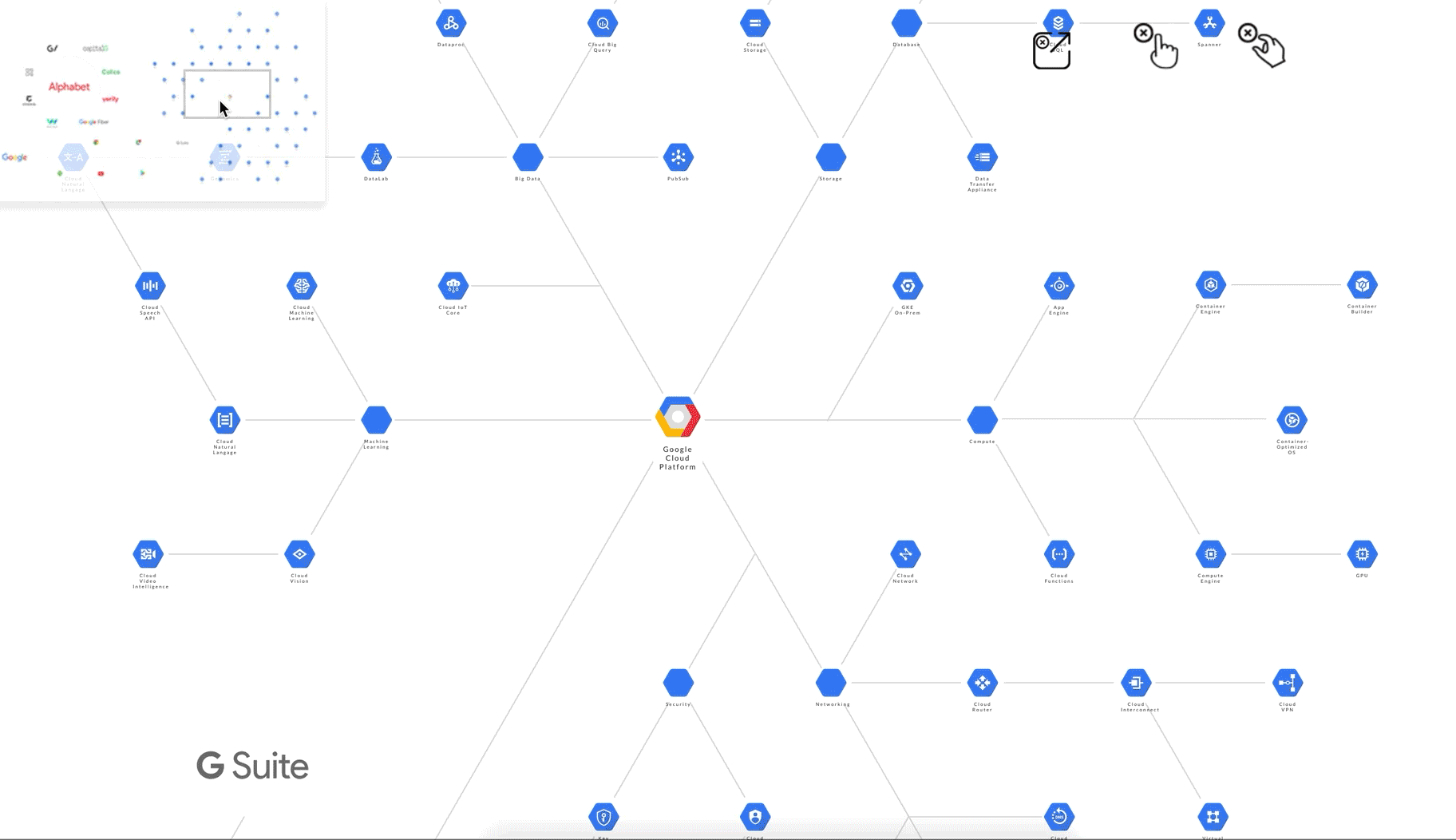

Navigate by mini-map: drag bracket, or, point-and-click

Getting started — the concept of action and reaction

Recall from the part-two discussion that we have a concept of action and reaction for our UI? In gist, an action on a mouse produces an equal reaction on an HTML element. For example, a cursor movement causes the canvas to move by the same distance. This mirroring effect is measured as the mouse delta value.

We’ll apply the same concept to build the map locator. A delta movement of the location indicator translates into a new relative scroll value on a bigger canvas. We can map this both ways to create a versatile two-way navigation gadget.

Prepping the miniMap container

Create a reference to the miniMap container. It will stay on top of the canvas to guide navigation.

var miniMap = document.getElementById( “miniMap” );

Create a reference indicator that exists inside the miniMap container.

var indicator = document.getElementById( "indicator" );

Use any method to generate your miniMap. We’ll take a shortcut and use a scaled down static image of the canvas.

Remember to use z-index to set the correct order of appearance.

Navigating with the indicator

Add an event listener to capture the mouse delta value of the indicator and update the new relative scroll position of the canvas.

miniMap.addEventListener("mousedown", handlerIndicator, false);

function handlerIndicator(event) {if (event.which == 1) {// formula}}

The formula should dynamically update the canvas scroll value based on the relative mouse delta value:

canvas.scrollTo(( canvas.scrollWidth * (event.clientX - boundingbox(0, 0, miniMap).x) / boundingbox(0, 0, miniMap).w ) - canvas.offsetWidth/2,(canvas.scrollHeight * (event.clientY - boundingbox(0, 0, miniMap).y) / boundingbox(0, 0, miniMap).h ) - canvas.offsetHeight/2);

canvas.scrollTo tells the browser to execute a scroll whenever a mousedown event on the miniMap is detected.
event.clientX and event.clientY returns the X and Y coordinates of the mouse cursor. These values are dynamically updated by the browser engine.
scrollWidth returns the width of the canvas (i.e. the parent container).
event.clientX — boundingbox(0, 0, miniMap).x) / boundingbox(0, 0, miniMap).w translates the relative indicator movement onto the actual-sized canvas.
canvas.offsetWidth/2 and canvas.offsetHeight/2 initiates the correct scroll offset values.

We have created a one-way navigation aid. Let’s make it two-way.

Navigating the canvas

Create an event listener to call a custom function handler_mouseScroll whenever interaction is detected on the canvas (i.e. scroll/pan/drag)

canvas.addEventListener("scroll", handlerMouseScroll, false);

function handlerMouseScroll(event) {

_var_ scrollpercentX = canvas.scrollLeft / canvas.scrollWidth;

_var_ scrollpercentY = canvas.scrollTop / canvas.scrollHeight;

indicator.style.left = miniMap.offsetWidth \* scrollpercentx
+ "px";
indicator.style.top = miniMap.offsetHeight \* scrollpercenty
+ "px";
...

}

scrollpercentX and scrollpercentY gives the conversion ratio for calculating the relative scroll values on the mini-map.
miniMap.offsetWidth and miniMap.offsetHeight gives the dimensions of the miniMap.
indicator.style.left and indicator.style.top updates the position of the indicator on the mini map.

Next Steps

With a two-way navigation gadget, visitors can explore a large canvas without getting disoriented. We can create infographics that are sophisticated yet easy to use.

In the next article, we’ll design a UI that can represent the information architecture of multifaceted content.
