Understanding How an Apache APISIX Plugin Works

My demo, Evolving your APIs, features a custom Apache APISIX plugin. I believe that the process of creating a custom plugin is relatively well-documented. However, I wanted to check the parameters of the _M.access(conf, ctx) function, especially the ctx one.

The documentation states:

The ctx parameter caches data information related to the request. You can use core.log.warn(core.json.encode(ctx, true)) to output it to error.log for viewing.

Unfortunately, core.log ultimately depends on nginx's logging, and its buffer is limited in size. Thanks to my colleague Abhishek for finding the info. For this reason, the ctx display is (heavily) truncated. I had to log data bit by bit; however, it was instructive.

The context

The ctx parameter is a Lua table. In Lua, table data structures are used for regular indexed access (akin to arrays) and key access (like hash maps). A single ctx instance is used for each request.

The Apache APISIX engine reads and writes data in the ctx table. It's responsible for forwarding the latter from plugin to plugin. In turn, each plugin can also read and write data.

I resorted to a custom plugin to conditionally apply rate-limiting in the demo. The custom plugin is a copy-paste of the limit-count plugin. Note that the analysis is done in a specific context. Refrain from assuming the same data is available in your own. However, it should be a good starting point.

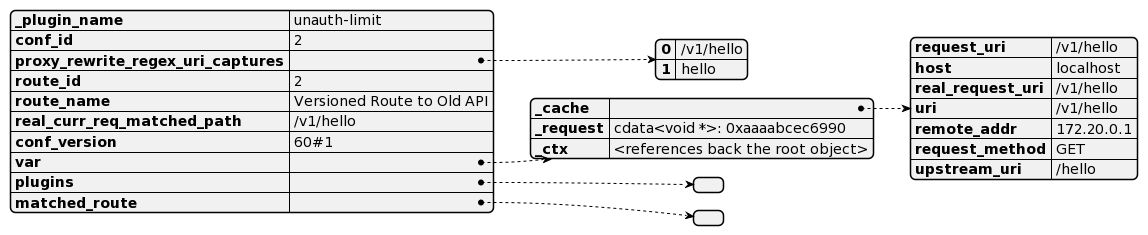

Overview of the ctx parameter

The data available in the ctx parameter is overwhelming. To better understand it, we shall go from the more general to the more particular. Let's start from the overview.

• _plugin_name: self-explanatory

• conf_id: either route ID or service ID

• proxy_rewrite_regex_uri_capture: data set by the proxy-rewrite plugin.

• route_id: route ID the plugin is applied to

• route_name: route name the plugin is applied to

• real_current_req_matched_path: URI for which matching was done

• conf_version: etcd-related revision - see below

• var: references the ctx object and a cache of data about the request, e.g., URI, method, etc.

• matched_route: the route that was matched based on host header/URI and/or remote_addr; see below

• plugins: pairs of plugin/data - see below

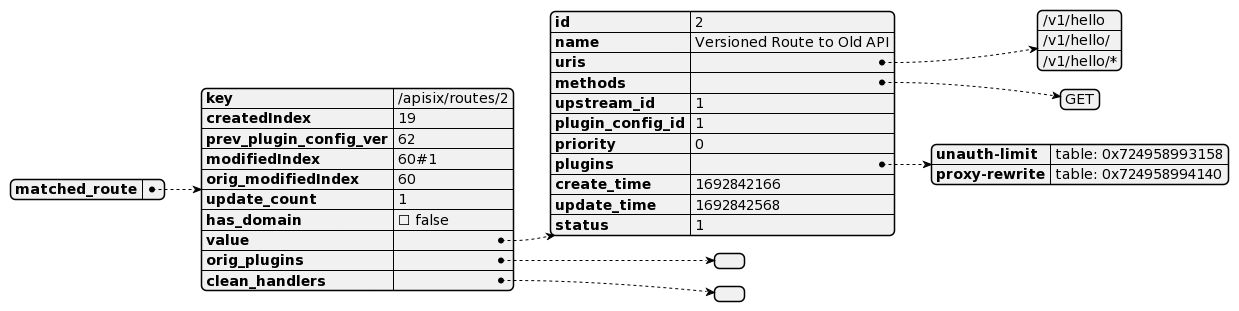

Matched route

The matched_route row is a complex data tree that deserves a detailed description.

• key: access key in the etcd datastore

• created_index, modifiedIndex and orig_modifiedIndex: these attributes are related to etcd and how it stores metadata associated with revisions. Different revisions of a single key are logged in the create_revision and pre_revision fields. The former points to the initial created row ID and is constant throughout the changes, while the latter points to the row ID of the previous value.

  Apache APISIX maps them respectively to the created_index and modifiedIndex values and uses them for caching. In many places, created_index is later assigned to conf_version - see above.

• prev_plugin_config_ver: after a plugin configuration is merged with the route configuration, the current modifiedIndex is assigned to prev_plugin_config_ver. It allows saving CPU cycles if one attempts to apply the same plugin config later in the call chain.

• update_count: replaced with modifiedIndex

• has_domain: whether the matched route references an upstream with a domain, e.g., http://httpbin.org, or not, e.g., 192.168.0.1

• orig_plugins: temporary placeholder used if a route has plugins defined directly and reference a plugins config

• clean_handlers: list of functions scheduled to be called after a plugin has been created

• value has keys related to how the route was created, as well as a couple of others:

curl http://apisix:9180/apisix/admin/routes/2 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
  "name": "Versioned Route to Old API",
  "methods": ["GET"],
  "uris": ["/v1/hello", "/v1/hello/", "/v1/hello/*"],
  "upstream_id": 1,
  "plugin_config_id": 1
}'

• priority: since we didn't set it, it has a default value 0. Priority is essential when multiple routes match to determine which one to apply.
• create_time: self-explanatory
• update_time: self-explanatory
• plugins: references to plugin's function
• status: I couldn't find this

Plugins

The plugins value contains plugin-related data in an indexed-based Lua table. Each plugin has two entries: the first (even-indexed) entry contains data related to the plugin in general, e.g., its schema; while the second (odd-index) entry data is related to its configuration in the current route.

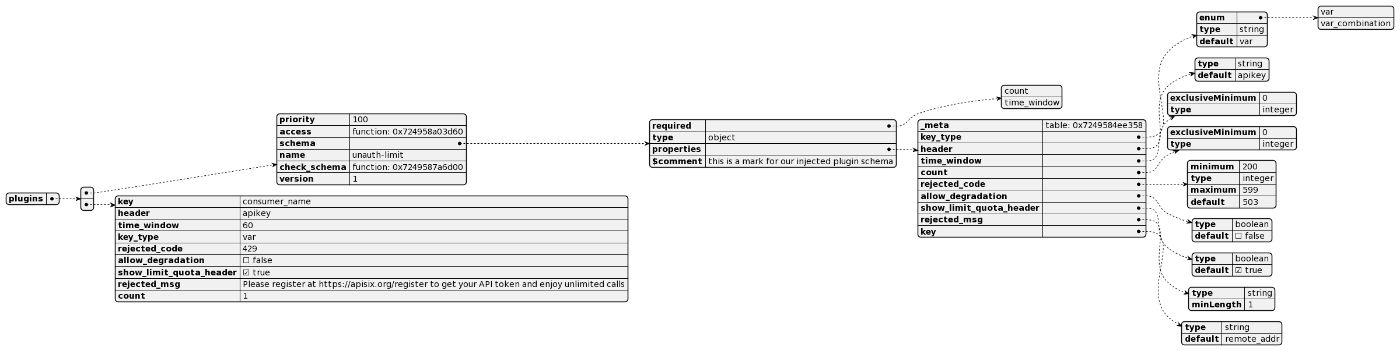

My setup has two plugins, hence four entries, but to keep things simpler, I kept only a single plugin in the following diagram:

Key values match directly to the plugin schema and configuration; you can check the whole descriptions directly in the plugin.

A final trick

I initially had issues printing the ctx table because of the nginx buffer limit and had to do it bit by bit. However, you can print it to a file.

Here's the function, courtesy of my colleague Zeping Bai:

local file, err = io.open("conf/ctx.json", "w+")
if not file then
    ngx.log(ngx.ERR, "failed to open file: ", err)
    return
end
file.write(core.json.encode(ctx, true) .. "\n")
file.close()

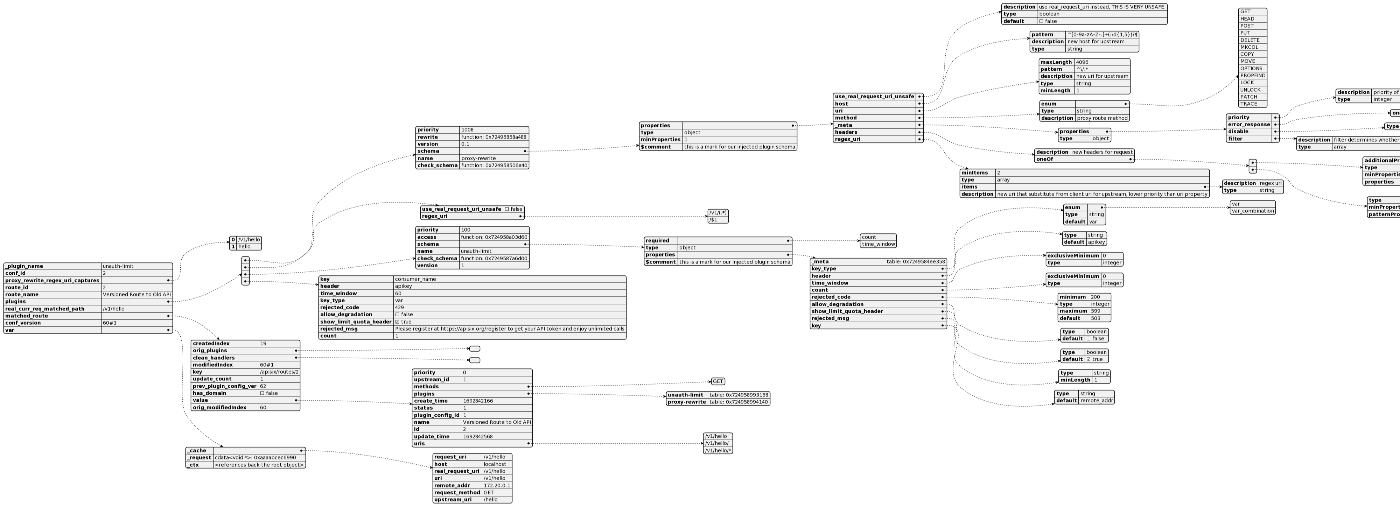

Here's the whole data representation, in case you have good eyes:

Alternatively, here's the PlantUML representation.

Conclusion

In this post, I described the structure of the ctx parameter in the access() function. While specific entries vary from configuration to configuration, it gives a good entry point into data manipulated by plugins.

It's also a good reminder that even if you're not fluent in a language or a codebase, you can get quite a lot of information by logging some variables.

To go further:

• ctx parameter
